3D Geological Analysis SystemGEO-CRE / GEO-CRE Pro

What is GEO-CRE/GEO-CRE Pro?

GEO-CRE is capable of visualizing various geological data in the virtual 3D world, such as terrain data, geological survey, geological map/CAD data, geophysical exploration data, and highly qualified borehole data (Pro only).

To cope with BIM / CIM / i-Construction, GEO-CRE allows sharing of the model to other 3D design fields. GEO-CRE can help you to analyze the geological impact on the underground structures, apply the data to various simulations, make 2D CAD drawing, and create CG animation.

Features

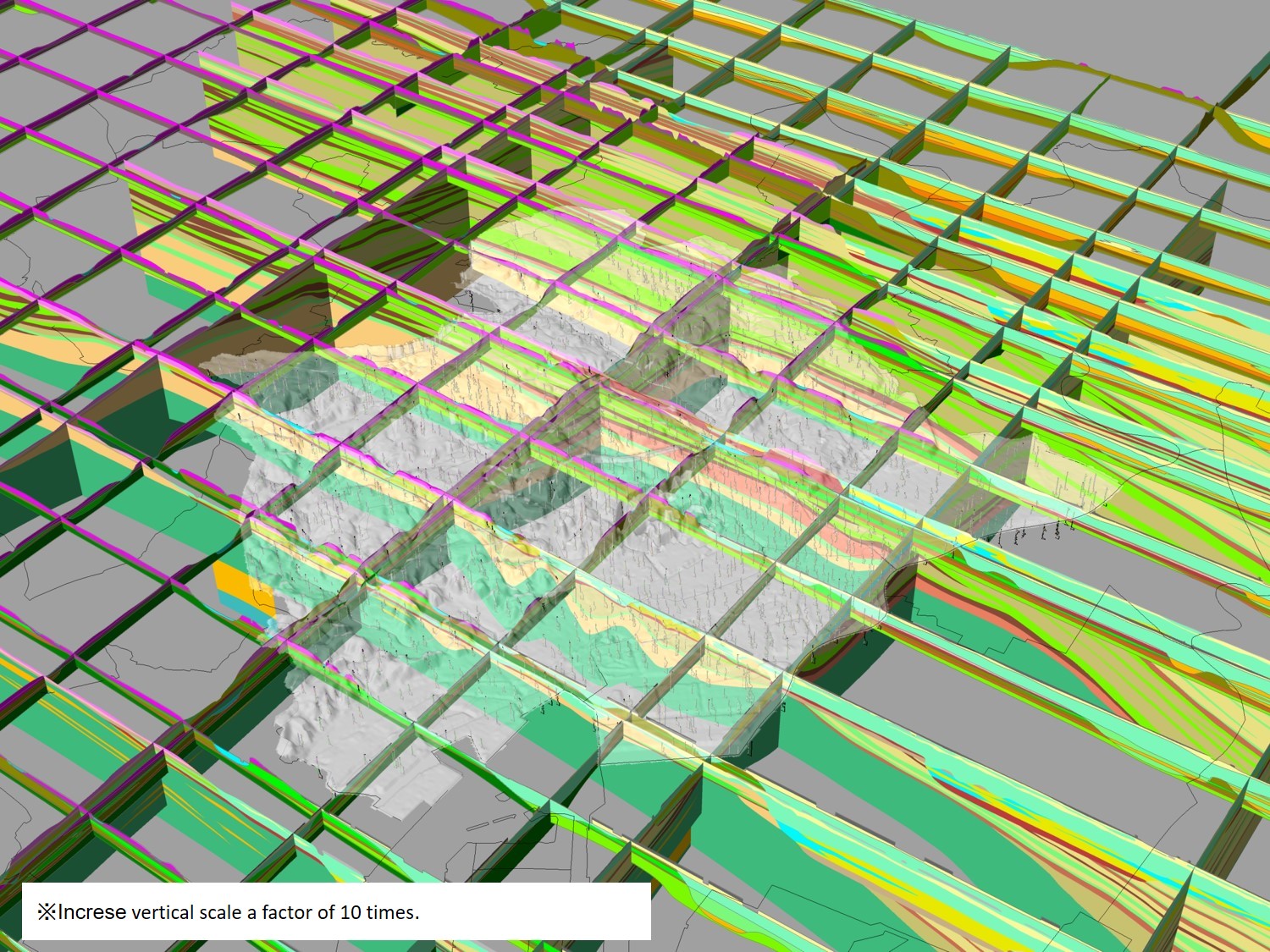

1. Geologic Modeling

  • Real-time modeling process in the 3D world
  • Available to various geological structures, including fracture, fold, lens, fault, etc.
  • Can control models with widths of several centimeters to several tens meters in one space

2. Building Structure Modeling

  • Ensure model accuracy by using the ability of 3D CAD
  • Supports general CAD data (2D and 3D)

3. Model Analysis

  • Check model accurancy
  • Check model interference
  • Create contour diagram
  • Create geotechnical cross-section
  • Calculate the dimension and soil amount etc.

4. Basic Geological Data Analysis

  • Input for borehole information/ visualization (Pro only)
  • Make borehole log
  • Borehole analysis (Pro only)
  • Stereo analysis of the geological structure etc.

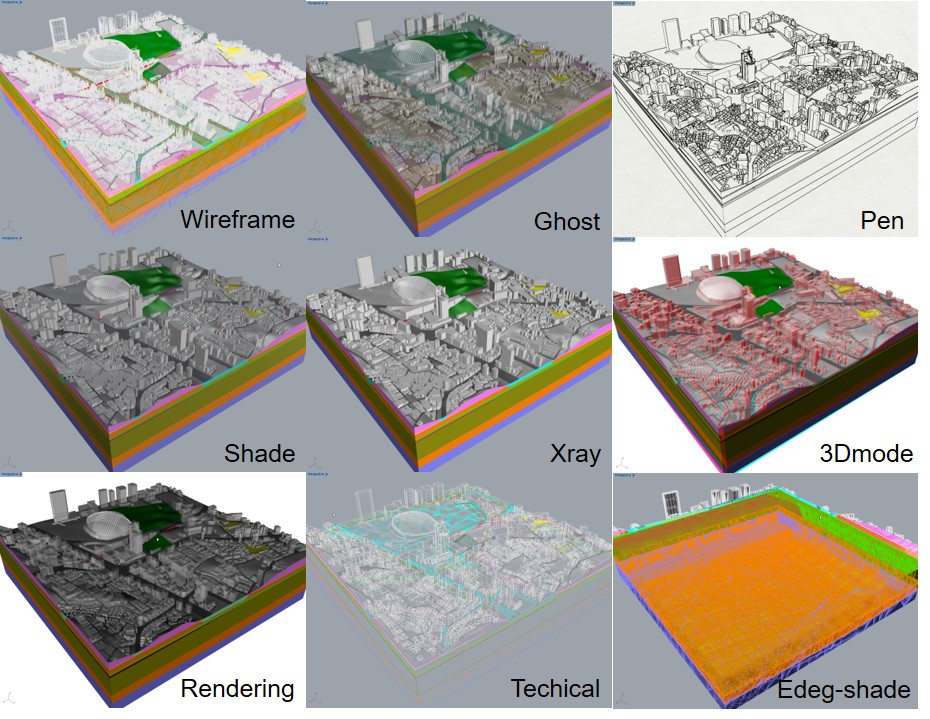

5. CG / Visualization

  • High-quality rendering
  • Anaglyph
  • Animation etc.

6. Data Management

  • Compressed data management
  • Hierarchical layer manager

7. Data Import and Export

  • Import and export borehole log data in XML
  • Supports various data formats including TXT (point cloud), GSI DEM, images, VRML, CG, CAD data (DXF / DWG), etc.

Flow

If you are considering the purchase of GEO-CRE/ GEO-CRE pro, feel free to contact us.

CONTACT US

System Requirements

OS Microsoft Windows 7/8.1/10 64bit recommended
It can run in 32-bit OS, but performance will be reduced.
CPU Intel Corei3-i7 or compable GPU
RAM 8GB or more
GPU OpenGL 2.x capable GPU recommended
Monitors 1920 x 1080 (Full HD) or more
HDD/SSD Free spaces needed For install: 5GB or more
For work: 100GB or more
